Push Button Start System Does Not Operate: Notes
PUSH BUTTON START SYSTEM DOES NOT OPERATE (SECURITY AND LOCKS) DESCRIPTION AND POSSIBLE CAUSES
| Description |
When the push button start is pressed, the ignition cannot be switched to ACC or ON (engine off). |
| Possible Causes |
- Fuse malfunction
- Customer mis-operation or misunderstanding

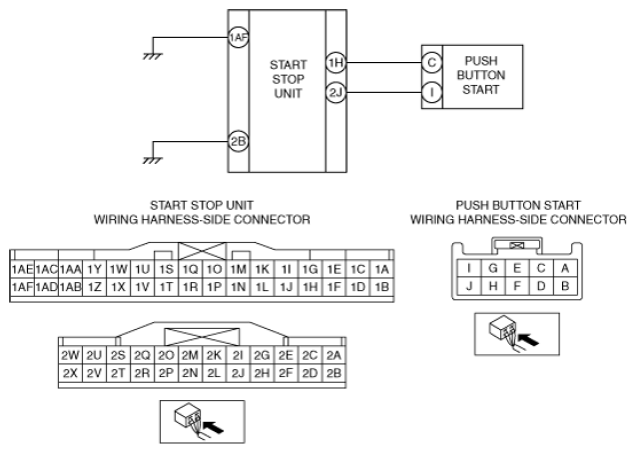

- Open circuit in wiring harness between the following terminals:
- Start stop unit terminal 1H and push button start terminal C
- Start stop unit terminal 2J and push button start terminal I
- Start stop unit terminal 1AF and ground
- Start stop unit terminal 2B and ground
|
 Courtesy of MAZDA MOTORS CORP.
|
