Driver-Side Door Glass Cannot Be Operated Manually Or Automatically: Notes

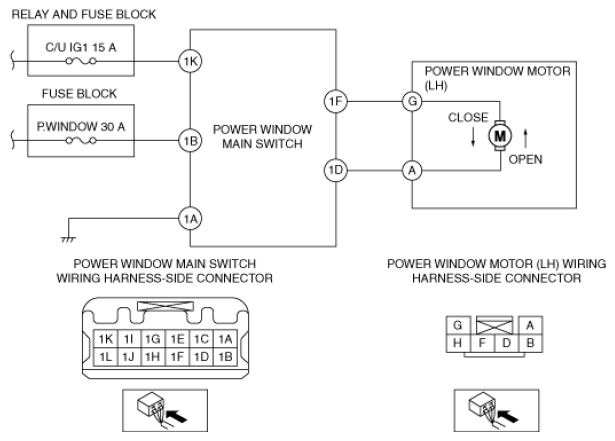

DRIVER-SIDE DOOR GLASS CANNOT BE OPERATED MANUALLY OR AUTOMATICALLY (POWER WINDOW SYSTEM) DESCRIPTION AND POSSIBLE CAUSES
| Description |
Driver-side door glass cannot be operated manually or automatically using power window main switch |
| Possible Causes |
- Power window main switch malfunction
- Power window motor (LH) malfunction
- Malfunction in power window main switch power supply circuit
- Short to ground in wiring harness between C/U IG1 15A fuse and power window main switch terminal 1K
- Short to ground in wiring harness between P.WINDOW 30A fuse and power window main switch terminal 1B
- C/U IG1 15A fuse malfunction
- P.WINDOW 30A fuse malfunction
- Open circuit in wiring harness between C/U IG1 15A fuse and power window main switch terminal 1K
- Open circuit in wiring harness between P.WINDOW 30A fuse and power window main switch terminal 1B
- Malfunction in wiring harness between power window main switch terminals and power window motor (LH) terminals
- Open circuit in wiring harness between power window main switch terminal 1D and power window motor (LH) terminal A
- Open circuit in wiring harness between power window main switch terminal 1F and power window motor (LH) terminal G
- Short to ground in wiring harness between power window main switch terminal 1D and power window motor (LH) terminal A
- Short to ground in wiring harness between power window main switch terminal 1F and power window motor (LH) terminal G
- Open circuit in wiring harness between power window main switch terminal 1A and body ground
- Connector poor contact or terminal damage
|
 Courtesy of MAZDA MOTORS CORP.
|
