Cruise Control Switch Inspection

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  1. Disconnect the negative battery cable and wait for 1 min or more  . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  3. Disconnect the clock spring connector (part wiring harness-side).
  4. Measure the resistance between clock spring terminals 3E and 3A (part wiring harness-side) using a ohmmeter.

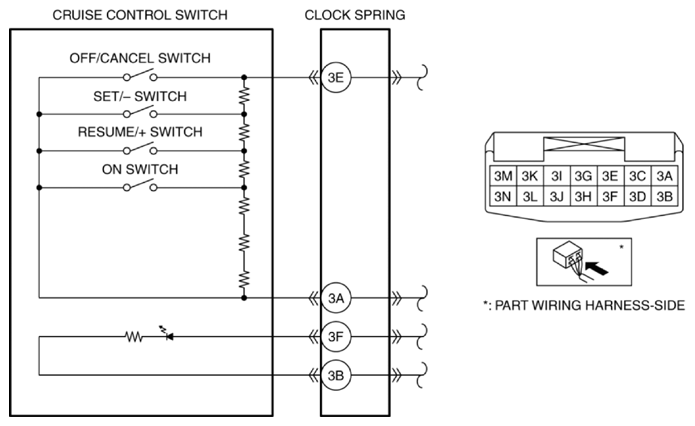

    Fig 1: Measuring Resistance Between Clock Spring Terminals 3E And 3A (Part Wiring Harness-Side) Using Ohmmeter
    G10951943Courtesy of MAZDA MOTORS CORP.
    Switch condition Resistance (ohm)
    OFF/CANCEL switch held at on Approx. 0
    SET/- switch held at on Approx. 84.5
    RESUME/+ switch held at on Approx. 189.5
    ON switch held at on Approx. 326.5
    Neutral Approx. 3, 311.5
  5. Apply battery positive voltage to clock spring terminal 3F (part wiring harness-side), and terminal 3B (part wiring harness-side) to ground.
    Fig 2: Applying Battery Positive Voltage To Clock Spring Terminal 3F (Part Wiring Harness-Side)
    G10951944Courtesy of MAZDA MOTORS CORP.
  6. Verify that the LED illuminates.
