Refrigerant Line Installation Note (1)
- Apply compressor oil to the O-rings and connect the joints.
- Tighten the joint bolt or nut by hand.CAUTION:

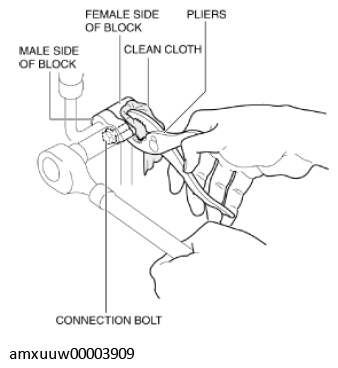

- When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.
- Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.
