DTC B1D9B-94: Error Signal Received From Front Roof Link Motor (LH) [Retractable Hardtop Control Module]: Notes

DTC B1D9B:94 (RETRACTABLE HARDTOP CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Error signal received from front roof link motor (LH)
Detection condition	The retractable hardtop control module receives a signal from the front roof link motor (LH) while the front roof link motor (LH) is not operating.
Fail-safe	Stops retractable hardtop operation

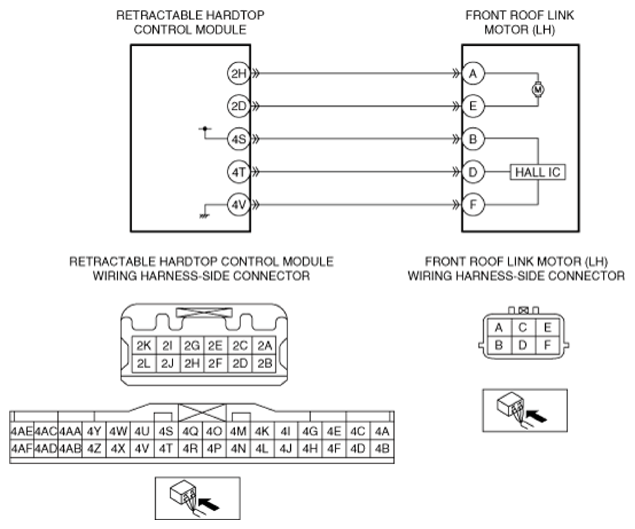

Possible cause	Short to power supply in wiring harness between the following terminals: Retractable hardtop control module terminal 2H and front roof link motor (LH) terminal A Retractable hardtop control module terminal 2D and front roof link motor (LH) terminal E Front roof link motor (LH) malfunction Retractable hardtop control module malfunction
Courtesy of MAZDA MOTORS CORP.
