DTC B1D9D-94: Error Signal Received From Rear Roof Link Motor (RH) [Retractable Hardtop Control Module]: Notes
DTC B1D9D:94 (RETRACTABLE HARDTOP CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Error signal received from rear roof link motor (RH) |
| Detection condition |
- The retractable hardtop control module receives a signal from the rear roof link motor (RH) while the rear roof link motor (RH) is not operating.
|
| Fail-safe |
- Stops retractable hardtop operation
|
| Possible cause |

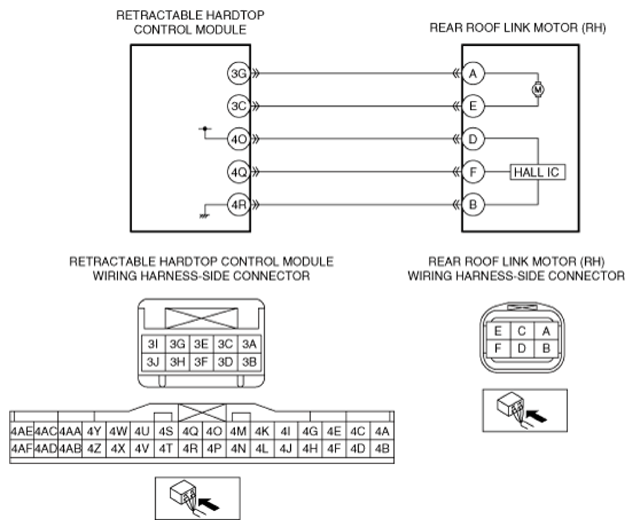

- Short to power supply in wiring harness between the following terminals:
- Retractable hardtop control module terminal 3G and rear roof link motor (RH) terminal A
- Retractable hardtop control module terminal 3C and rear roof link motor (RH) terminal E
- Rear roof link motor (RH) malfunction
- Retractable hardtop control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
