DTC B1D9E-23: Rear Roof Link Motor (LH) Pulse Input Circuit Malfunction [Retractable Hardtop Control Module]: Notes

DTC B1D9E:23 (RETRACTABLE HARDTOP CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Rear roof link motor (LH) pulse input circuit malfunction
Detection condition	The retractable hardtop control module cannot detect a pulse signal from the rear roof link motor (LH) when the rear roof link motor operation starts.
Fail-safe	Stops retractable hardtop operation

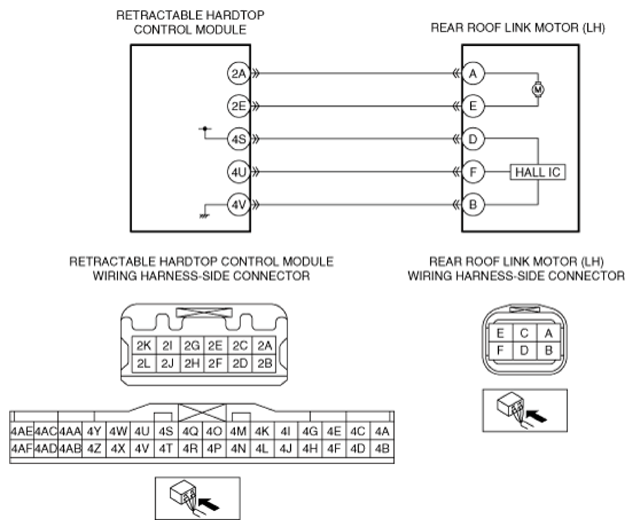

Possible cause	Short to ground in wiring harness between the following terminals: Retractable hardtop control module terminal 4U and rear roof link motor (LH) terminal F Retractable hardtop control module terminal 4S and rear roof link motor (LH) terminal D Short to power supply in wiring harness between the following terminals: Retractable hardtop control module terminal 4U and rear roof link motor (LH) terminal F Retractable hardtop control module terminal 4V and rear roof link motor (LH) terminal B Open circuit in wiring harness between the following terminals: Retractable hardtop control module terminal 4U and rear roof link motor (LH) terminal F Retractable hardtop control module terminal 4V and rear roof link motor (LH) terminal B Retractable hardtop control module terminal 4S and rear roof link motor (LH) terminal D Line-to-line short circuit in wiring harness between the following terminals: Rear roof link motor (LH) terminal F and rear roof link motor (LH) terminal D Rear roof link motor (LH) terminal F and rear roof link motor (LH) terminal B Rear roof link motor (LH) terminal D and rear roof link motor (LH) terminal B Rear roof link motor (LH) malfunction Retractable hardtop control module malfunction
Courtesy of MAZDA MOTORS CORP.
