DTC B1D9F-94: Error Signal Received From Rear Roof Link Motor (LH) [Retractable Hardtop Control Module]: Notes

DTC B1D9F:94 (RETRACTABLE HARDTOP CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Error signal received from rear roof link motor (LH)
Detection condition	The retractable hardtop control module receives a signal from the rear roof link motor (LH) while the rear roof link motor (LH) is not operating.
Fail-safe	Stops retractable hardtop operation

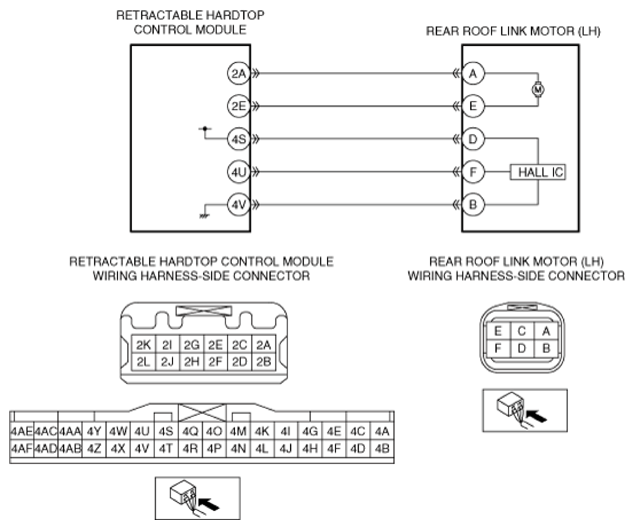

Possible cause	Short to power supply in wiring harness between the following terminals: Retractable hardtop control module terminal 2A and rear roof link motor (LH) terminal A Retractable hardtop control module terminal 2E and rear roof link motor (LH) terminal E Rear roof link motor (LH) malfunction Retractable hardtop control module malfunction
Courtesy of MAZDA MOTORS CORP.
