DTC U200B-16: Hall Effect Switch Power Supply Malfunction [Retractable Hardtop Control Module]: Notes

DTC U200B:16 (RETRACTABLE HARDTOP CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Hall effect switch power supply malfunction
Detection condition	The retractable hardtop control module detects Hall effect switch power supply voltage of less than 4 V.
Fail-safe	Stops retractable hardtop operation

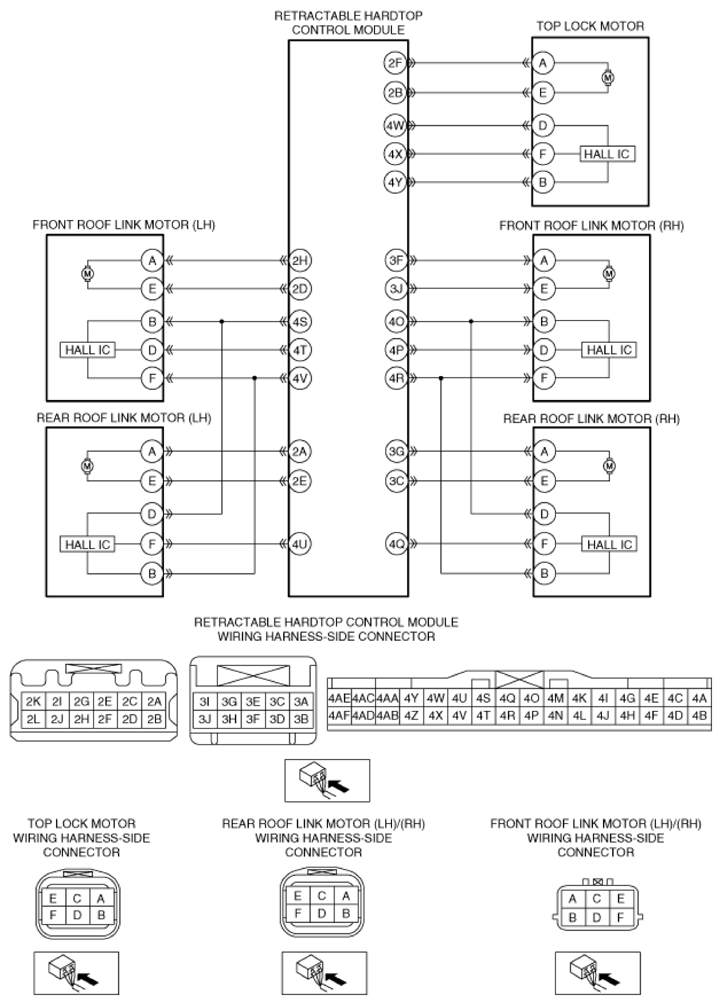

Possible cause	Short to ground in wiring harness between the following terminals: Retractable hardtop control module terminal 4O and front roof link motor (RH) terminal B Retractable hardtop control module terminal 4S and front roof link motor (LH) terminal B Short to ground in wiring harness between the following terminals: Retractable hardtop control module terminal 4O and rear roof link motor (RH) terminal D Retractable hardtop control module terminal 4S and rear roof link motor (LH) terminal D Short to ground in wiring harness between retractable hardtop control module terminal 4W and top lock motor terminal D Retractable hardtop control module malfunction
