Lock/Unlock Operation Not Possible Using Remote Transmitter: Notes
LOCK/UNLOCK OPERATION NOT POSSIBLE USING REMOTE TRANSMITTER (SECURITY AND LOCKS) DESCRIPTION AND POSSIBLE CAUSES
| Description |
- Door or fuel-filler lid cannot be locked/unlocked using remote transmitter
- Trunk lid does not open even if using remote transmitter
|
| Possible Causes |
- Keyless receiver malfunction
- Remote transmitter malfunction

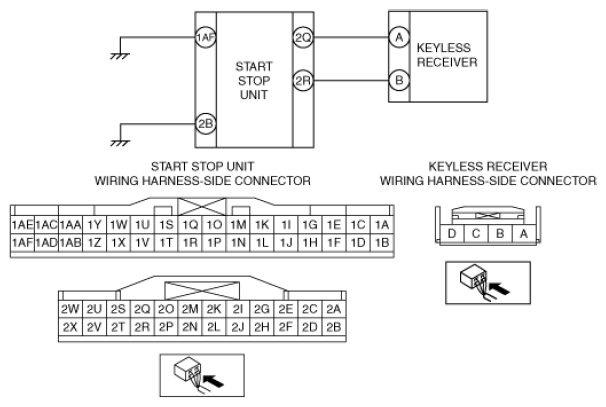

- Open circuit in wiring harness between the following terminals:
- Keyless receiver terminal A and start stop unit terminal 2Q
- Keyless receiver terminal B and start stop unit terminal 2R
- Start stop unit terminal 1AF and ground
- Start stop unit terminal 2B and ground
- Connector poor contact or terminal damage
- Customer's mis-operation or misunderstanding
- Effect of non-standard equipment (any control unit with built-in micro computer such as radio set, mobile telephone, and TV)
|
 Courtesy of MAZDA MOTORS CORP.
|
