Generator Removal Note

  1. Disconnect the A/C compressor connector.
    G11274139Courtesy of MAZDA MOTORS CORP.
  2. Remove the generator upper bolt.
  3. Remove the wiring harness bracket.
  4. Remove the generator lower bolt.
  5. Remove the generator.

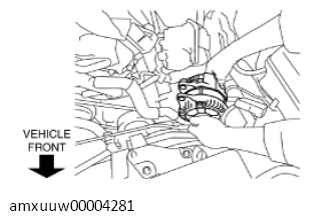

G11274140Courtesy of MAZDA MOTORS CORP.
