Passenger-Side Door Glass Cannot Be Operated Manually Or Automatically: Notes

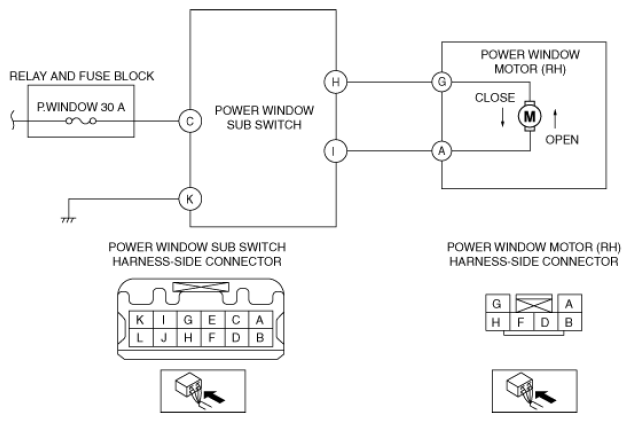

PASSENGER-SIDE DOOR GLASS CANNOT BE OPERATED MANUALLY OR AUTOMATICALLY (POWER WINDOW SYSTEM) DESCRIPTION AND POSSIBLE CAUSES
| Description |
Passenger-side door glass cannot be operated manually or automatically using power window sub switch |
| Possible Causes |
- Power window sub switch malfunction
- Power window motor (RH) malfunction
- Malfunction in power window sub switch power supply circuit
- Short to ground in wiring harness between P.WINDOW 30A fuse and power window sub switch terminal C
- P.WINDOW 30A fuse malfunction
- Open circuit in wiring harness between P.WINDOW 30A fuse and power window sub switch terminal C
- Malfunction in wiring harness between power window sub switch terminals and power window motor (RH) terminals
- Open circuit in wiring harness between power window sub switch terminal I and power window motor (RH) terminal A
- Open circuit in wiring harness between power window sub switch terminal H and power window motor (RH) terminal G
- Short to ground in wiring harness between power window sub switch terminal I and power window motor (RH) terminal A
- Short to ground in wiring harness between power window sub switch terminal H and power window motor (RH) terminal G
- Open circuit in wiring harness between power window sub switch terminal K and body ground
- Connector poor contact or terminal damage
|
 Courtesy of MAZDA MOTORS CORP.
|
