Ignition Coil/Ion Sensor Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the seal cover. (See SEAL COVER REMOVAL/INSTALLATION .)
Remove the front suspension tower bar (joint). (With front suspension tower bar) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

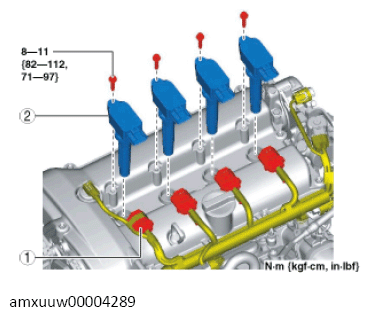

Fig 1: Ignition Coil/Ion Sensor Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Ignition coil/ion sensor
