Net Installation Note

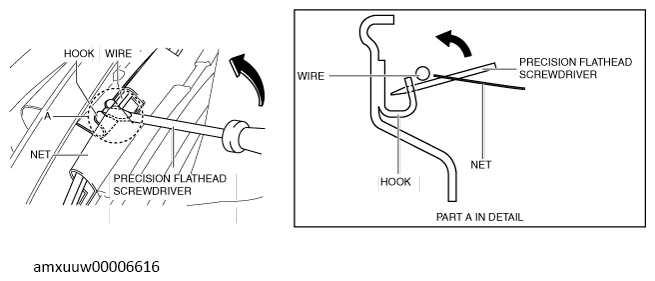

  1. Insert a precision flathead screwdriver in the position shown in the figure.
    G13490664Courtesy of MAZDA MOTORS CORP.
  2. Move the precision flathead screwdriver in the direction of the arrow shown in the figure and install the wire onto the hook.
