DTC U3000-04: 360° View Monitor Control Module Internal Malfunction [360°VIEW MONITOR CONTROL MODULE]: Outline

DTC U3000:04 (360° VIEW MONITOR CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	360°view monitor control module internal malfunction
Detection condition	The 360°view monitor control module detects a 360°view monitor control module internal malfunction.
Fail-safe	(See DTC TABLE [360°VIEW MONITOR CONTROL MODULE (US)] .)

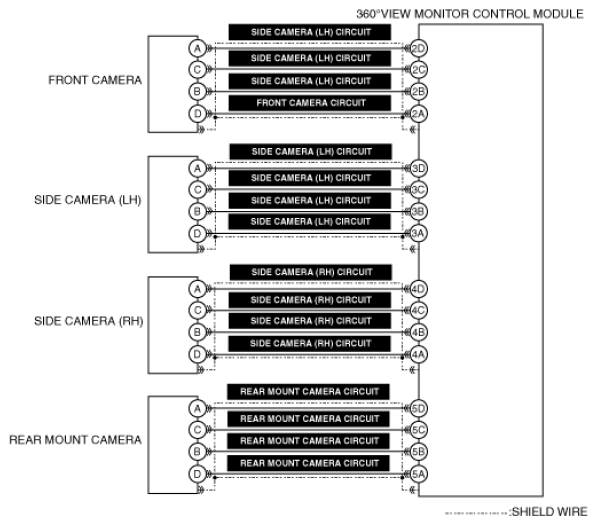

Possible cause	360°view monitor control module malfunction Front camera malfunction Side camera (LH) malfunction Side camera (RH) malfunction Rear mount camera malfunction Short to ground in any of the following circuits. Front camera circuit Side camera (LH) circuit Side camera (RH) circuit Rear mount camera circuit Short to power supply in any of the following circuits. Front camera circuit Side camera (LH) circuit Side camera (RH) circuit Rear mount camera circuit Open circuit in the any of the following circuits. Front camera circuit Side camera (LH) circuit Side camera (RH) circuit Rear mount camera circuit
Courtesy of MAZDA MOTORS CORP.
