Rain Sensor Installation Note

CAUTION:

If the rate at which the rain sensor reflects or transmits infrared light between the rain sensor and the windshield, or through the protective sheet, is changed, the rain sensor will determine that there is a problem in the rain detection function and stop the auto wiper system control. Be careful of the following when installing the rain sensor:

CAUTION:

Do not reuse the rain sensor protective sheet.
Do not touch the rain sensor lens, rain sensor protective sheet, and sensor installation area on the windshield with your fingers.
Verify that there are no air bubbles after installing the rain sensor.

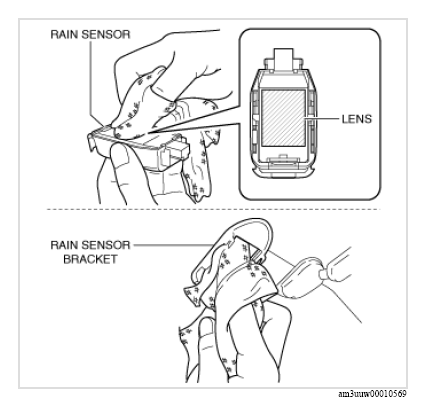

Wipe off any oil or dirt from the rain sensor lens and the windshield using a clean cloth.

Courtesy of MAZDA MOTORS CORP.

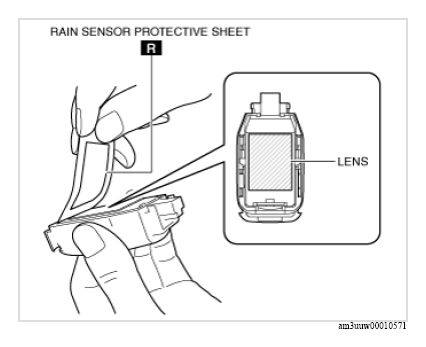

Peel off adhesive tape backing from a new rain sensor protective sheet.

Courtesy of MAZDA MOTORS CORP.
Adhere a new rain sensor protective sheet to the rain sensor lens.

Courtesy of MAZDA MOTORS CORP.
Peel off adhesive tape backing from the rain sensor protective sheet.

Courtesy of MAZDA MOTORS CORP.
Move the rain sensor in the direction of the arrow shown in the figure and install the rain sensor to the bracket.

Courtesy of MAZDA MOTORS CORP.
Press the rain sensor in the direction (direction of the arrow shown in figure) of the windshield and press out any air bubbles.

Courtesy of MAZDA MOTORS CORP.
Verify that there are no air bubbles between the rain sensor and the windshield.
