Rear Console Disassembly/Assembly: Notes

Disassemble in the order indicated in the table.

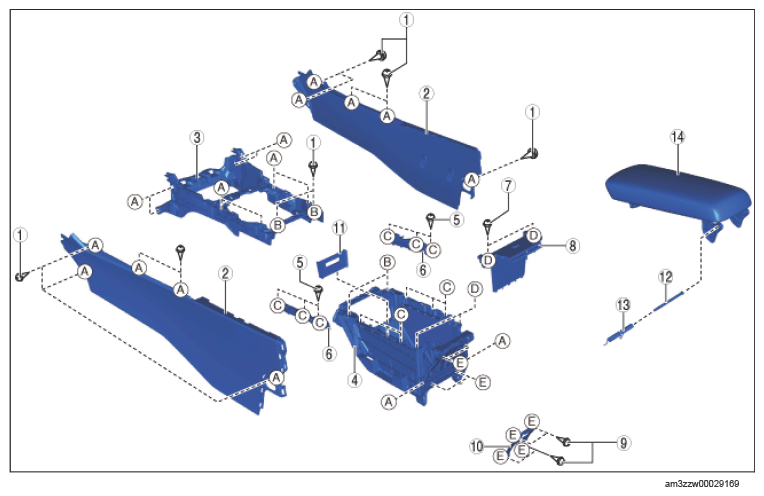

G14584011

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component No.	Refer to
1	Screw
2	Console panel
(See	Console Panel Removal Note.)
3	Rear console bracket (front)
4	Rear console box
5	Screw
6	Bracket cover
7	Screw
8	Rear console parts
9	Screw
10	Rear console bracket (rear)
11	Plate
12	Pin
13	Spring
14	Rear console lid

Assemble in the reverse order of disassembly.
