Brake Pipe Removal Note

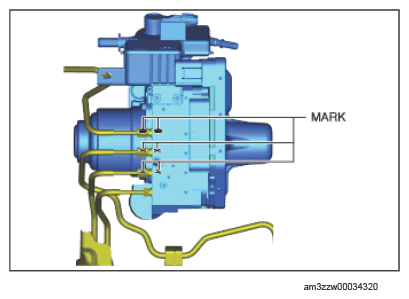

  1. Place an alignment mark on the brake pipe and electronically controlled brake unit.
    G14581008Courtesy of MAZDA MOTORS CORP.
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Disconnect the brake pipes.
