Connector Installation Note

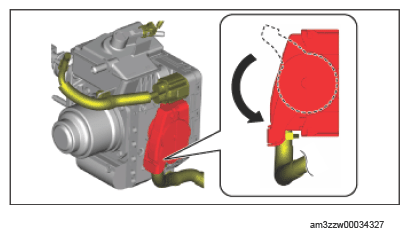

  1. Connect the connector and pull the lock lever down in the direction of the arrow.
    G14581015Courtesy of MAZDA MOTORS CORP.
  2. After connecting the connector, verify that the connector cover is completely pushed in.
