Connector Removal Note

CAUTION:
  • If sand or other particles get into the connector, it may be difficult to remove. To prevent damaging the connector, be careful not to use excessive force when disconnecting it.

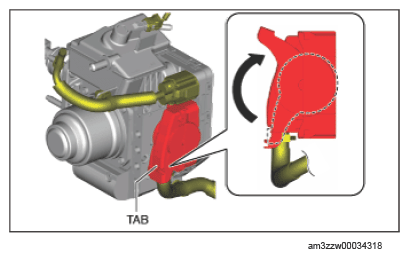

  1. Pull the lock lever up in the direction of the arrow while pressing the tab of the lock lever.
    G14581006Courtesy of MAZDA MOTORS CORP.
