Reserve Hose Installation Note

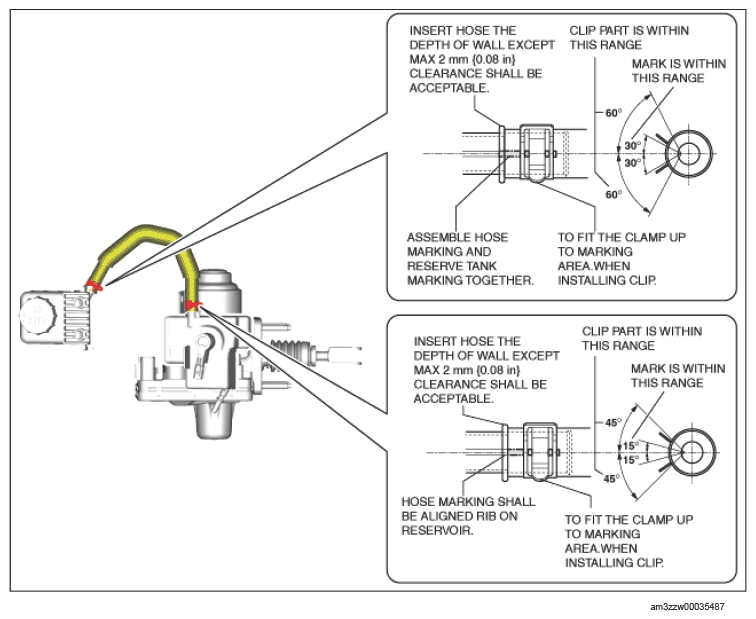

Install the reserve hoses as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
