No. 8 Auto Hold Does Not Work: Notes

NO. 8 AUTO HOLD DOES NOT WORK (ELECTRONICALLY CONTROLLED BRAKE SYSTEM) POSSIBLE CAUSE

Troubleshooting item	Autohold does not work

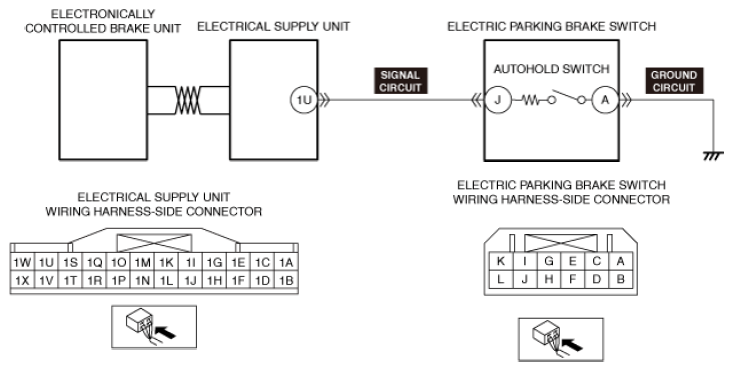

Possible cause	Stuck AUTOHOLD switch in off position Electrical supply unit (ESU) detects a malfunction. Open circuit in AUTOHOLD switch signal circuit Open circuit in AUTOHOLD switch ground circuit
Courtesy of MAZDA MOTORS CORP.
