Front Brake Disc Removal/Installation (Us): Notes

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

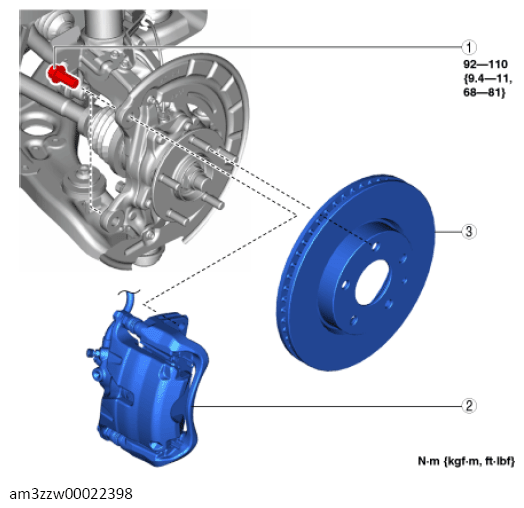

Fig 1: Front Brake Disc Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Bolt
2	Front brake caliper component (See FRONT BRAKE CALIPER COMPONENT REMOVAL NOTE .) (See FRONT BRAKE CALIPER COMPONENT INSTALLATION NOTE .)
3	Disc plate
