Dashboard Disassembly/Assembly (Us): Notes
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.PARTS DESCRIPTION

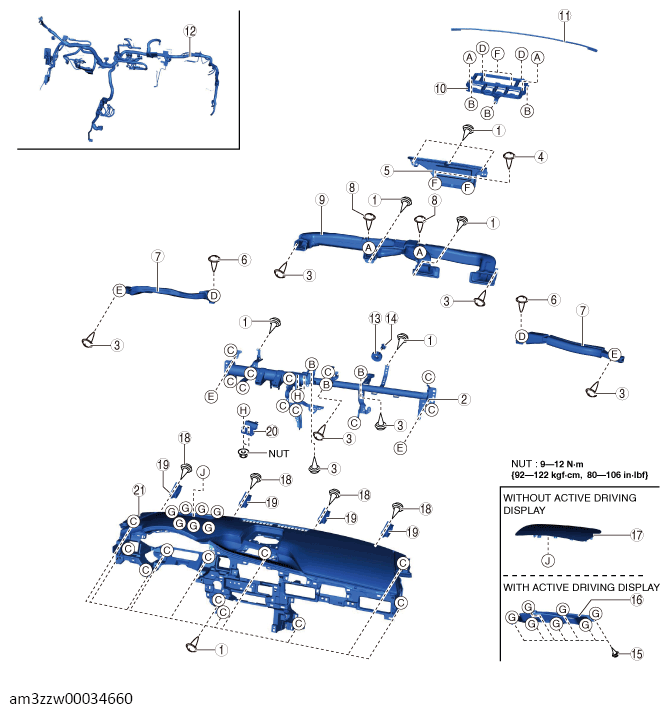

1 Screw 2 Dashboard member 3 Screw 4 Screw 5 Duct No. 2 6 Screw 7 Demister duct 8 Screw 9 Center duct 10 Duct No. 1 11 Seal tape 12 Wiring harness
(See DASHBOARD WIRING HARNESS REMOVAL NOTE .)13 Cushion rubber 14 Member junction 15 Screw (with active driving display) 16 Hole cover (with active driving display) 17 Hole cover (without active driving display) 18 Screw 19 Guide pin 20 Dashboard bracket (without active driving display and with dashboard bracket) 21 Dashboard - Assemble in the reverse order of disassembly.NOTE:
- When replacing the dashboard, remove the following parts and install them to the new dashboard.
- Passenger-side air bag module
- Center speaker grille (with Bose®) (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
- Front center speaker (with Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .)
- Global positioning system (GPS) antenna (with global positioning system (GPS)) (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
- Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
- Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION (US) .)
- Driver monitoring camera unit (with driver monitoring system) (See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION (US) .)
