Console Panel Removal Note

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

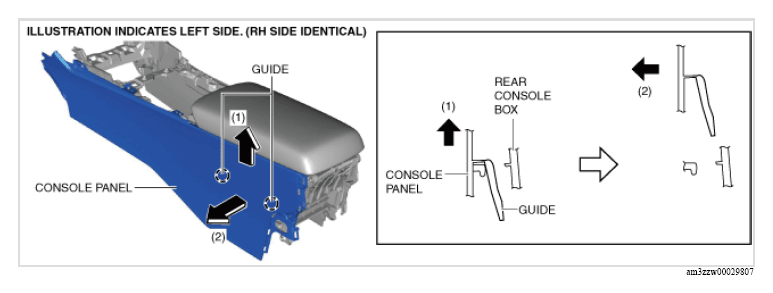

Move the console panel in the order of arrows (1) and (2) shown in the figure and remove the guides from the rear console box.

Courtesy of MAZDA MOTORS CORP.
