Front Combination Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Fogging or condensation on the inside of the front combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the front combination lights rises after illuminating the headlights or a period of time has elapsed.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION (US) .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
  4. Remove the bolt.

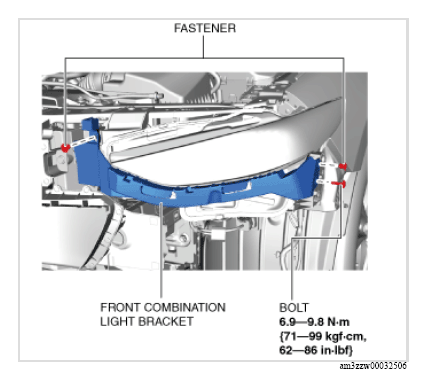

    Fig 1: Front Combination Light Bracket Bolt With Torque Specification
    G13179586Courtesy of MAZDA MOTORS CORP.
  5. Remove the fasteners.
  6. Remove the front combination light bracket.
    CAUTION:
    • When removing the front combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the front combination light from the body, apply protective tape to the body.

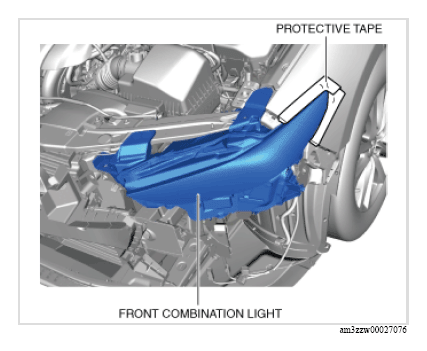

  7. To prevent scratches or damage, affix protective tape to the position shown in the figure.
    G13179587Courtesy of MAZDA MOTORS CORP.

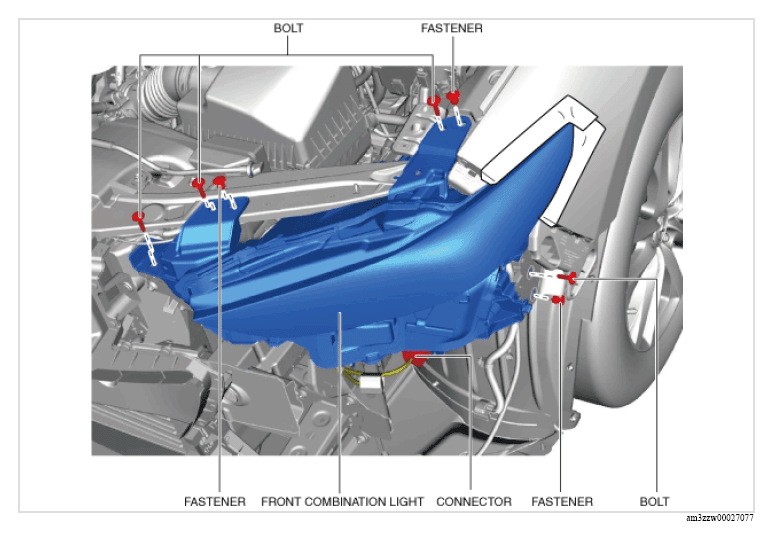

  8. Disconnect the connector.
    G13179588Courtesy of MAZDA MOTORS CORP.
  9. Remove the bolts. (See BOLT INSTALLATION NOTE .)
  10. Remove the fasteners.

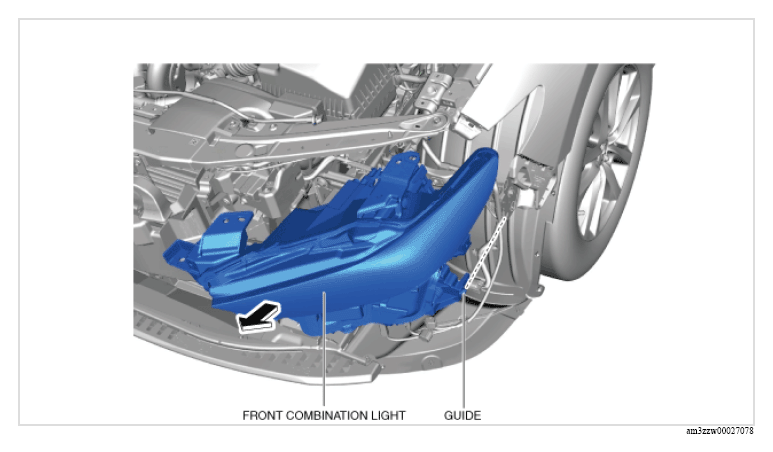

  11. Pull the front combination light in the direction of the arrow shown in the figure and remove the front combination light.
    G13179589Courtesy of MAZDA MOTORS CORP.
  12. Install in the reverse order of removal.
  13. Perform the headlight aiming adjustment. (See HEADLIGHT AIMING (US) .)
  14. Perform the 360°view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
  15. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
  16. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
