Liftgate Lock Striker Removal/Installation: Notes

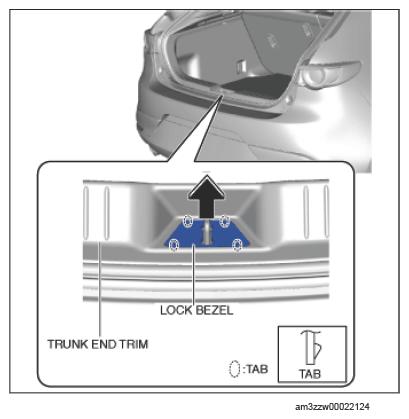

  1. Remove the lock bezel in the direction of the arrow shown in the figure while detaching tabs.
    G14583586Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolts, then remove the liftgate lock striker. (See Liftgate Lock Striker Installation Note .)

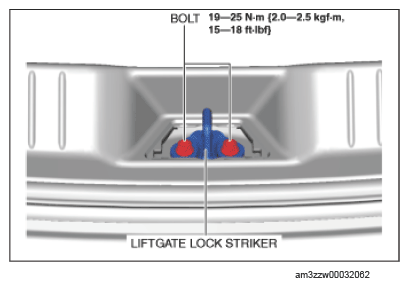

    Fig 1: Liftgate Lock Striker And Bolts With Torque Specification
    G14583587Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
