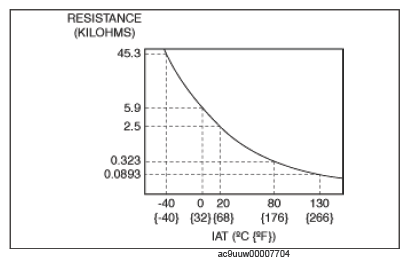

Specification (Reference)

IAT (°C {°F}) Resistance (Kilohms)
0 {32.EN_US} Approx. 5.9
20 {68.EN_US} Approx. 2.5
80 {176.EN_US} Approx. 0.323
130 {266.EN_US} Approx. 0.0893
G14580118Courtesy of MAZDA MOTORS CORP.
