Tie Rod Assembly Note

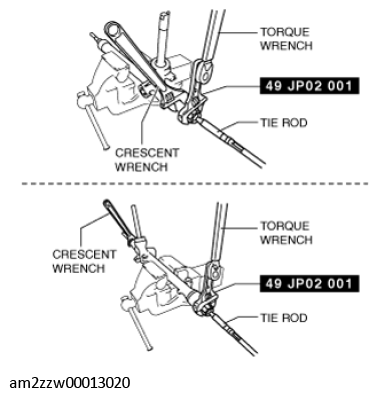

- Install the SST to the torque wrench as shown in the figure, set it on the tie rod, and measure dimensions A and L shown in the figure.
- Tighten the tie rod after calculating the tightening torque using the following formula.
Tightening torque
100-110 N.m {10.2-11.2 kgf.m, 74-81 ft.lbf}
Calculation formula
T x (L/A)
T: Tightening torque (100-110 N.m {10.2-11.2 kgf.m, 74-81 ft.lbf})
L: Torque wrench effective length
A: Length from center of tie rod to grip
