Steering Column Component Removal Note

CAUTION:
  • Always lock the adjusting lever to prevent damage to the steering column. In addition, do not unlock the adjusting lever until the steering column installation is completed.
  • If the steering column is removed, remove it according to the procedure to prevent damage to intermediate shaft that could result if the steering column is removed in the incorrect order.

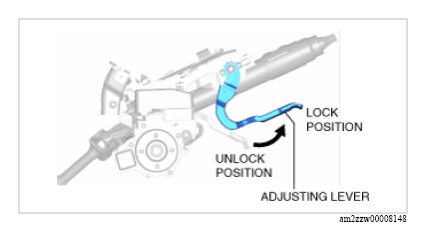

  1. Lock the adjusting lever.
    G13150796Courtesy of MAZDA MOTORS CORP.
  2. Remove the joint bolt A, disconnect the intermediate shaft from the steering gear (pinion).
  3. Remove the nut, and then remove the steering column component from the dashboard member.
