Boot Band Assembly Note

Assemble the new boot band to the boot.
Crimp the boot band using the SST.

Courtesy of MAZDA MOTORS CORP.

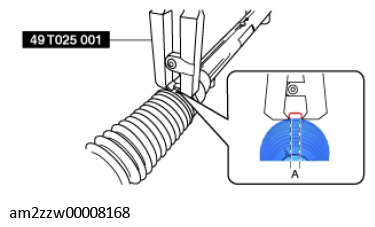

Verify that the crimping clearance A is within the specification.
- If crimping clearance A exceeds the specification, reduce SST clearance, and crimp the boot band again.
- If crimping clearance A is less than the specification, increase SST clearance, and crimp a new boot band.
Specification

1.5-2.5 mm {0.060-0.098 in}
Rotate the by hand and verify that it is securely installed to the boot band.
