Steering Gear And Linkage Assembly: Notes

  1. Assemble in the order shown in the figure.
  2. Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

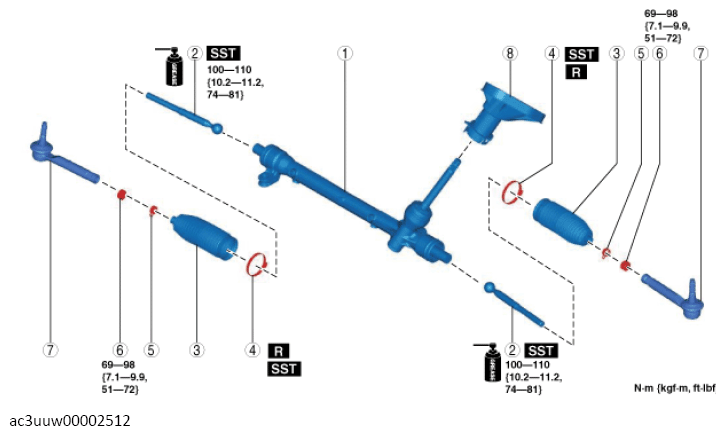

    Fig 1: Exploded View Of Steering Gear And Linkage Assembly With Torque Specification
    G13150767Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Steering gear
    2 Tie Rod
    (See Tie Rod Assembly Note .)
    3 Boot
    4 Boot band
    (See Boot Band Assembly Note .)
    5 Boot clamp
    6 Locknut
    7 Tie-rod end
    (See Tie-rod End Assembly Note .)
    8 Dust cover
