Steering Gear And Linkage Disassembly: Notes

  1. Remove the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the figure.

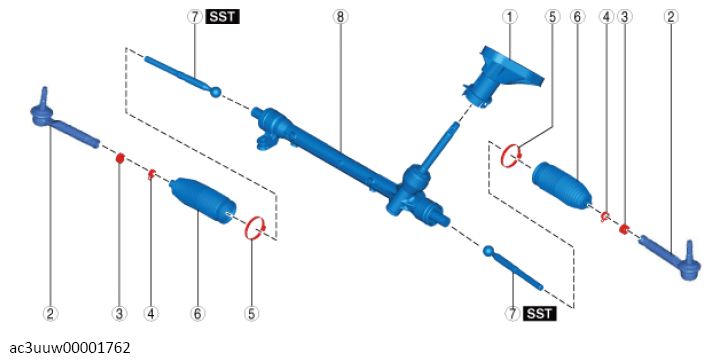

    G13150774Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Dust cover
    (See Dust Cover Disassembly Note .)
    2 Tie-rod end
    (See Tie-rod End Disassembly Note .)
    3 Locknut
    4 Boot clamp
    5 Boot band
    (See Boot Band Disassembly Note .)
    6 Boot
    7 Tie Rod
    (See Tie Rod Disassembly Note .)
    8 Steering gear
