Active Driving Display Installation Note
Install the screws in the order of (1), (2), (3), and (4).

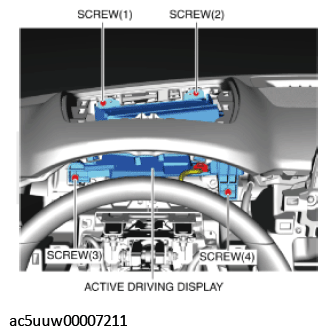

Fig 1: Active Driving Display Screws Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
