Indicator Unit Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION ).
    2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION ).
    3. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION ).
    4. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION ).
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).
    6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION ).
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION ).
    8. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION ).
    9. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    10. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    11. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION ).
    12. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION ).
    13. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION ).
    14. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION ).
    15. Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION ).

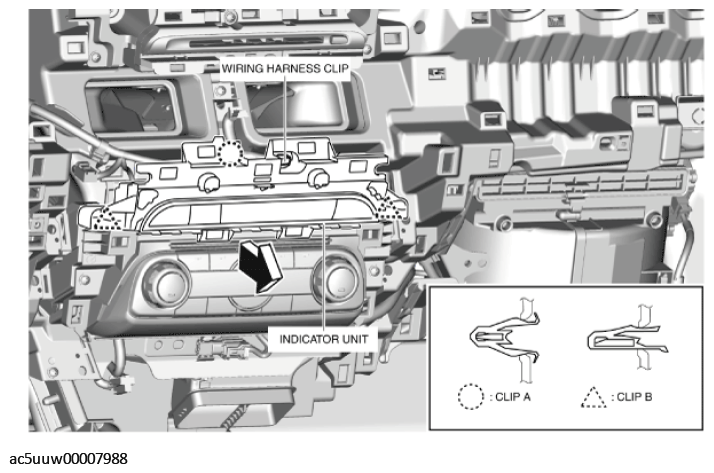

  3. Remove the wiring harness clip.
    G11427802Courtesy of MAZDA MOTORS CORP.
  4. Pull the indicator unit in the direction of the arrow shown in the figure and detach the clip A and B.

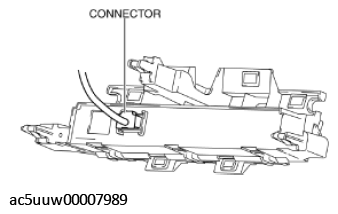

  5. Disconnect the connector.
    G11427803Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
