Disc Pad (Front) Replacement: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

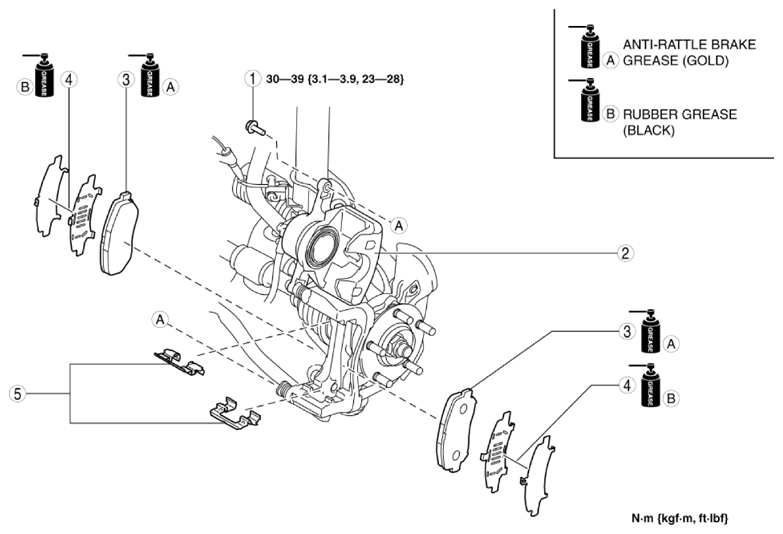

Fig 1: Disc Pad (Front) Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Caliper
3	Disc pad (See Disc Pad Installation Note .)
4	Shim
5	Guide plate (See Guide Plate Installation Note .)
