Steering Angle Adjustment
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen the tie-rod end locknuts.
- Remove the steering gear boot clamp.
- Turn the tie rods.

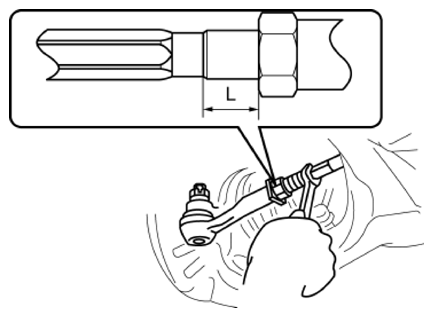

Standard length L
- 10.1-23.1 mm {0.398-0.909 in}
- Turn the tie rods equally to provide the correct maximum steering angle.
- Tighten the tie-rod end locknuts.
Tightening torque
- 69-98 N.m {7.1-9.9 kgf.m, 51-72 ft.lbf}
- Verify that the boot is not twisted, and install the boot clamp.
- Adjust the toe-in after adjusting the steering angle.
