Airflow Mode Main Link Installation

WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

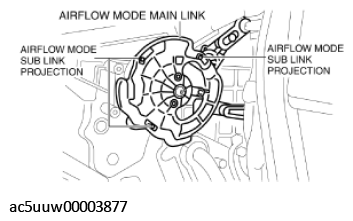

  1. Align the airflow mode main link and the airflow mode sub link projection as shown in the figure.
    G11430213Courtesy of MAZDA MOTORS CORP.

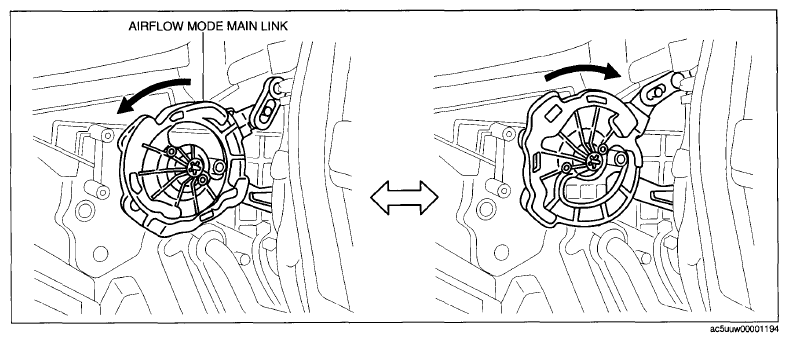

  2. When lightly pressing the airflow main link to rotate it in the direction of the arrow, verify that the airflow mode door switches to the position for each mode.
    G09075808Courtesy of MAZDA MOTORS CORP.

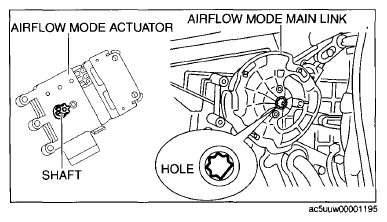

  3. Align the airflow mode main link installation hole with the shape of the airflow mode actuator shaft, and install while holding the airflow mode main link.
    G09075809Courtesy of MAZDA MOTORS CORP.

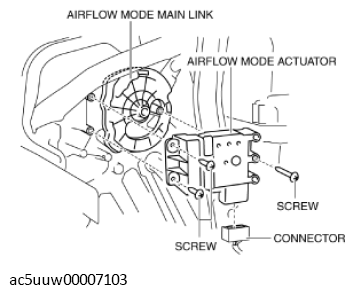

  4. Install the airflow mode actuator.
    G11430216Courtesy of MAZDA MOTORS CORP.
  5. Install the screws.
  6. Connect the connector.
  7. Install the following parts:
    1. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
    2. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    3. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    6. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    7. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  8. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
