Blower Unit Disassembly/Assembly
WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.
- Disassemble in the order indicated in the table.PART DESCRIPTION

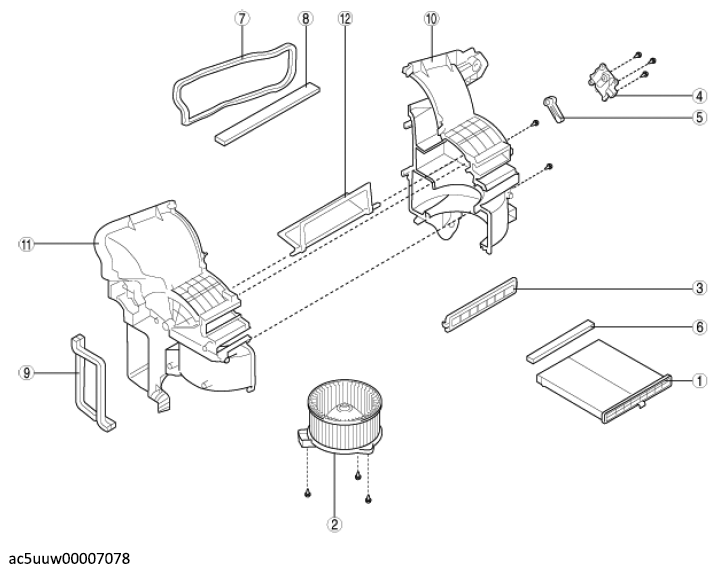

1 Air filter 2 Blower motor 3 Cover 4 Air intake actuator 5 Air intake link 6 Polyurethane (1) 7 Polyurethane (2) 8 Polyurethane (3) 9 Polyurethane (4) 10 Blower case (1) 11 Blower case (2) 12 Air intake door - Assemble in the reverse order of disassembly.
