Bolt Installation Note

WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the bolts in the order of (1), (2) and (3).

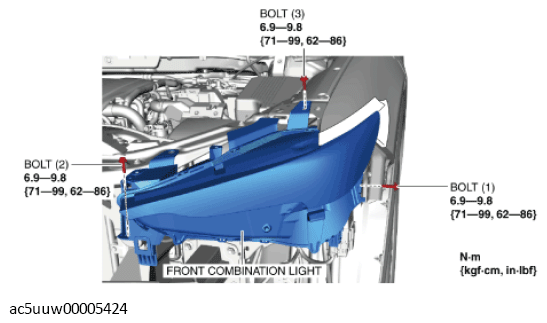

Fig 1: Front Combination Light Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
