Headlight Leveling Switch Inspection

WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The headlight leveling switch is integrated with the cluster switch.
For the headlight leveling switch removal/installation, refer to "CLUSTER SWITCH REMOVAL/INSTALLATION" (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

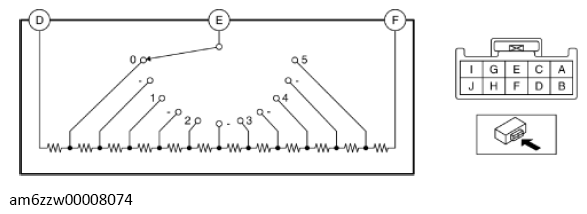

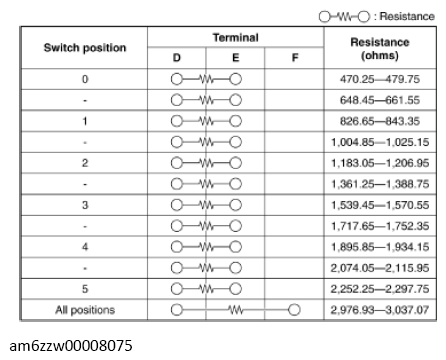

4. Verify that the resistance between the cluster switch terminals is as indicated in the table.
Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
