Master Cylinder Removal/Installation: Notes
WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
Replacement Part
| Nut | Set bolt | Bush |
| Quantity: 2 | Quantity: 1 | Quantity: 2 |
| Location of use: Cylinder component | Location of use: Brake fluid reserve tank | Location of use: Cylinder component |
| O-ring | - | - |
| Quantity: 1 | ||
| Location of use: Cylinder component |
Oil and Chemical Type
| Brake fluid type |
| Type: SAE J1703 or FMVSS116 DOT-3 |
CAUTION:
- Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.
NOTE:
- Tighten the brake pipe flare nut using any commercially available flare nut wrench.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the battery. (See BATTERY REMOVAL/INSTALLATION (VIN M) .) (See BATTERY REMOVAL/INSTALLATION (VIN Y) .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)

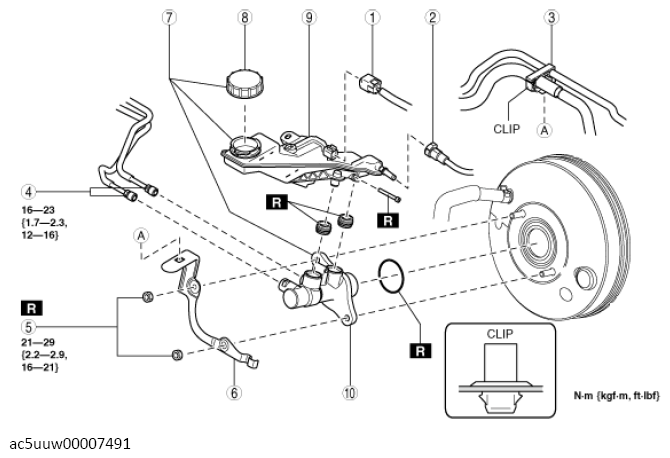

PARTS DESCRIPTION
| 1 | Brake fluid level sensor connector |
| 2 | Clutch reserve hose (MTX) (See Clutch Reserve Hose Removal Note (MTX) .) (See Clutch Reserve Hose Installation Note (MTX) .) |
| 3 | Hose holder |
| 4 | Brake pipe |
| 5 | Nut |
| 6 | Bracket |
| 7 | Master cylinder |
| 8 | Cap |
| 9 | Brake fluid reserve tank |
| 10 | Cylinder component |
