Rear Brake Caliper Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
Special service tool (SST)
| 49 F043 002 | Wrench |
Replacement Part
| Dust seal | Piston seal |
| Quantity: 1 | Quantity: 1 |
| Location of use: Caliper body | Location of use: Piston |
Oil and Chemical Type
| Brake fluid type | Rubber grease (Pink) |
| Type: SAE J1703 or FMVSS116 DOT-3 | Type: RENOLIT RUBBER GREASE JP |
CAUTION:
- Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.
- Remove in the order indicated in the table.PARTS DESCRIPTION

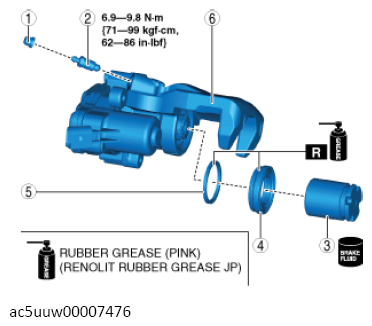

1 Bleeder cap 2 Bleeder screw 3 Piston
(See Piston Disassembly Note .)
(See Dust Seal, Piston Assembly Note .)4 Dust seal
(See Dust Seal, Piston Assembly Note .)5 Piston seal 6 Caliper body - Install in the reverse order of removal.
