DTC B103E-13: Walk-In Actuator (RH) Circuit Malfunction [Rear One-Touch Walk-In Control Module]: Notes

DTC B103E:13 [REAR ONE-TOUCH WALK-IN CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE

Description	Walk-in actuator (RH) circuit malfunction
Detection condition	Rear one-touch walk-in control module detects an open circuit or short to ground in the walk-in actuator (RH) circuit.
Fail-safe	Not applicable

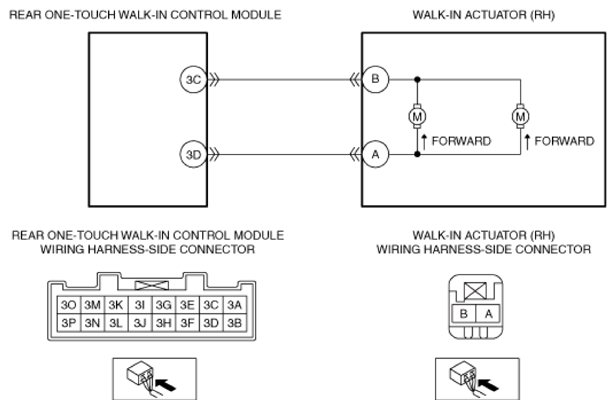

Possible cause	Walk-in actuator (RH) connector or terminal malfunction Rear one-touch walk-in control module connector or terminal malfunction Short to ground in wiring harness between the following circuits: Rear one-touch walk-in control module terminal 3C-Walk-in actuator (RH) terminal B Rear one-touch walk-in control module terminal 3D-Walk-in actuator (RH) terminal A Open circuit in wiring harness between the following circuits: Rear one-touch walk-in control module terminal 3C-Walk-in actuator (RH) terminal B Rear one-touch walk-in control module terminal 3D-Walk-in actuator (RH) terminal A Walk-in actuator (RH) malfunction Rear one-touch walk-in control module malfunction

Courtesy of MAZDA MOTORS CORP.
