DTC B10E7-11: IG1 Relay Circuit Malfunction [Rear One-Touch Walk-In Control Module]: Notes
DTC B10E7:11 [REAR ONE-TOUCH WALK-IN CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
IG1 relay circuit malfunction |
| Detection condition |
- Rear one-touch walk-in control module detects a short to ground in the IG1 relay circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- IG1 relay malfunction
- Rear one-touch walk-in control module connector or terminal malfunction

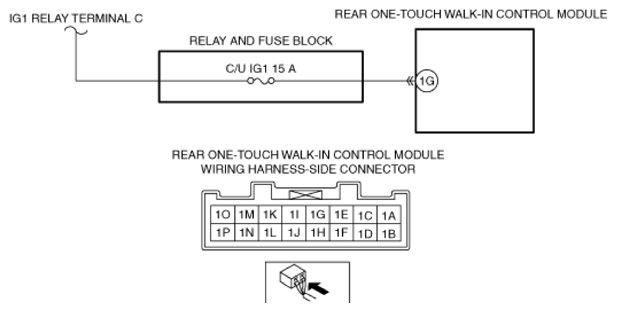

- Short to ground in wiring harness between C/U IG1 15 A fuse and rear one touch walk-in control module terminal 1G
- C/U IG1 15 A fuse malfunction
- Open circuit in wiring harness between IG1 relay terminal C and rear one touch walk-in control module terminal 1G
- Rear one-touch walk-in control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
