DTC B10E7-12: IG1 Relay Circuit Malfunction [Rear One-Touch Walk-In Control Module]: Notes
DTC B10E7:12 [REAR ONE-TOUCH WALK-IN CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
IG1 relay circuit malfunction |
| Detection condition |
- Rear one-touch walk-in control module detects a short to power supply in the IG1 relay circuit.
|
| Fail-safe |
- Inhibits the rear one-touch walk-in operation function from being driven for the second-row seat (LH).
- Inhibits the rear one-touch walk-in operation function from being driven for the second-row seat (RH).
|
| Possible cause |
- IG1 relay malfunction
- Rear one-touch walk-in control module connector or terminal malfunction

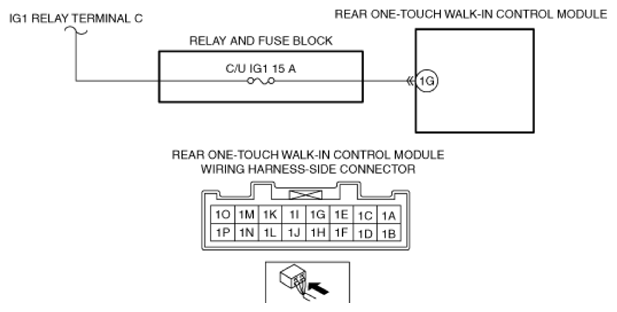

- Short to power supply in wiring harness between IG1 relay terminal C and rear one-touch walk-in control module terminal 1G
- Rear one-touch walk-in control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
