DTC B131C-13: Walk-In Actuator (LH) Circuit Malfunction [Rear One-Touch Walk-In Control Module]: Notes

DTC B131C:13 [REAR ONE-TOUCH WALK-IN CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE

Description	Walk-in actuator (LH) circuit malfunction
Detection condition	Rear one-touch walk-in control module detects an open circuit or short to ground in the walk-in actuator (LH) circuit.
Fail-safe	Not applicable

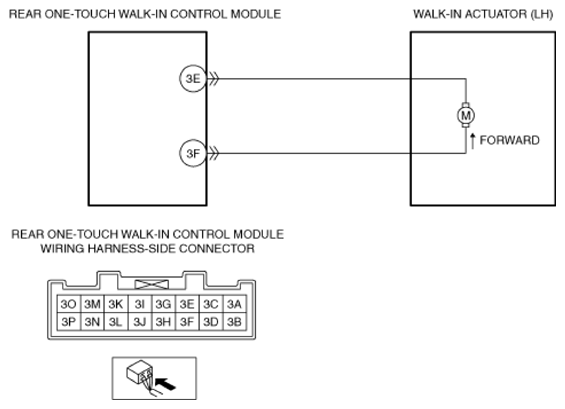

Possible cause	Rear one-touch walk-in control module connector or terminal malfunction Short to ground in wiring harness between the following circuits: Rear one-touch walk-in control module terminal 3E-Walk-in actuator (LH) Rear one-touch walk-in control module terminal 3F-Walk-in actuator (LH) Open circuit in wiring harness between the following circuits: Rear one-touch walk-in control module terminal 3E-Walk-in actuator (LH) Rear one-touch walk-in control module terminal 3F-Walk-in actuator (LH) Walk-in actuator (LH) malfunction Rear one-touch walk-in control module malfunction

Courtesy of MAZDA MOTORS CORP.
