Connectivity Master Unit (CMU) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

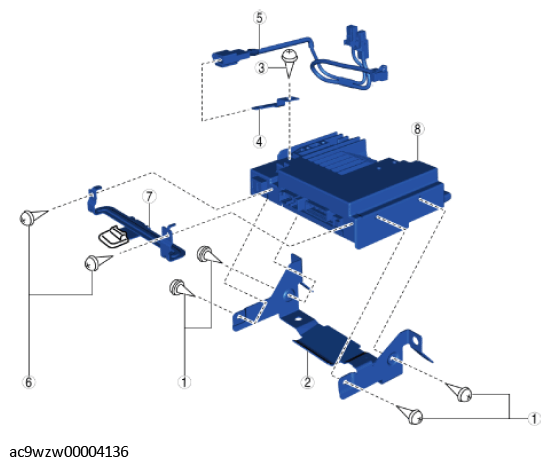

Fig 1: Connectivity Master Unit Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw A
2	Bracket A
3	Screw B
4	Bracket B
5	Short-cord (See Short-cord Assembly Note .)
6	Screw C
7	Bracket C
8	Connectivity master unit (CMU)

Assemble in the reverse order of disassembly.
