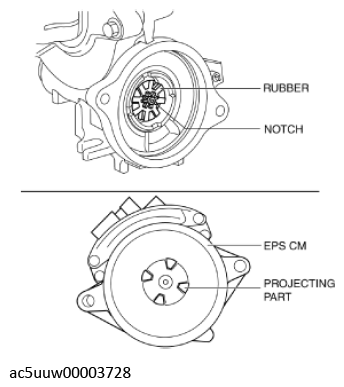

Spacer, Rubber and EPS Control Module Installation Note
- Install the spacer and rubber to the steering column.
- Install the EPS Control Module so that the projecting part of the EPS Control Module (rotor) is engaged with the notch in the rubber.NOTE:
- If the projecting part of the EPS Control Module (rotor) is not engaged with the notch in the rubber, adjust the position of the EPS Control Module projection (rotor).
