Cable outer end (transaxle side) installation note

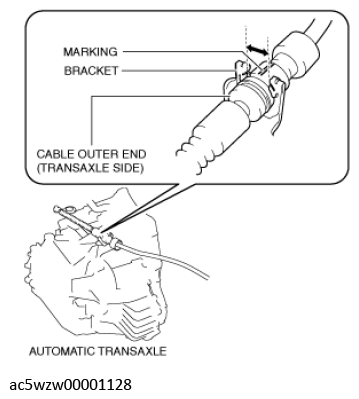

  1. Assemble the cable outer end (transaxle side) to the bracket so that the marking is in the area of the arrow shown in the figure.
    G11441244Courtesy of MAZDA MOTORS CORP.
